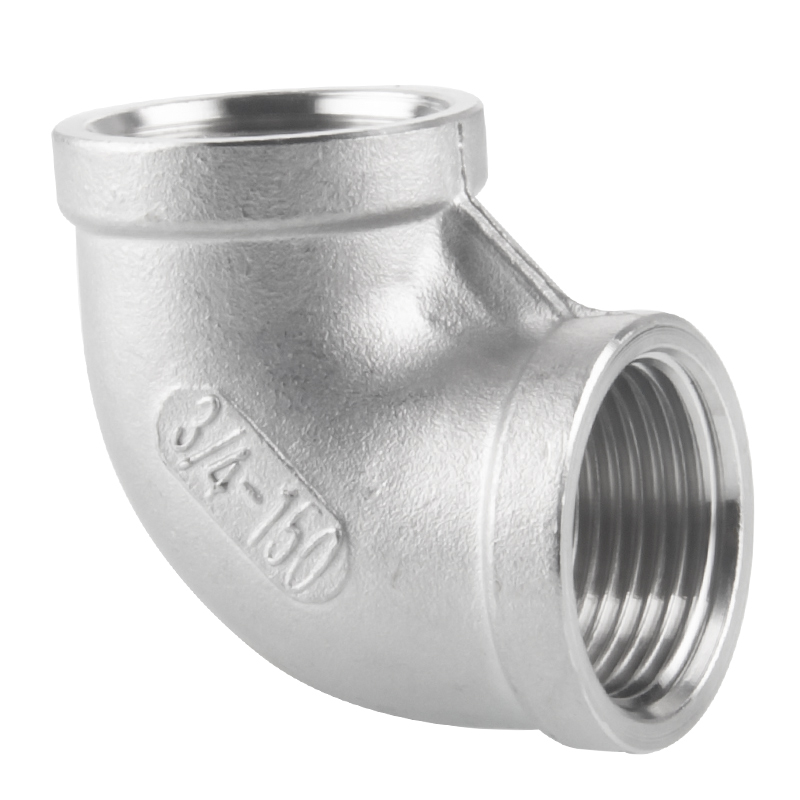

150# SS ท่อขั้วต่อเกลียวแบบเกลียว 90 °องศาข้อศอก

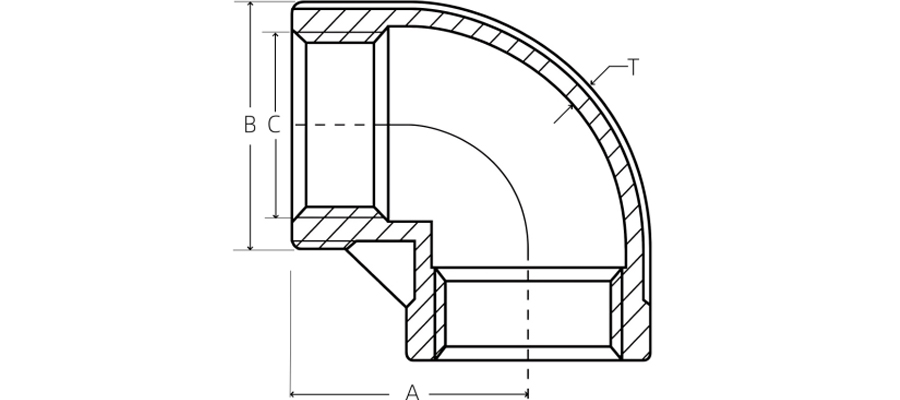

DN

NPS

อัน

ข

T

C

2000

3000

6000

2000

3000

6000

2000

3000

6000

6

1/8 "

21

21

25

22

22

25

3.18

3.18

6.35

rp 1/8 "

8

1/4 "

21

25

28

22

25

33

3.18

3.30

6.60

rp 1/4 "

10

3/8 "

25

28

33

25

33

38

3.18

3.51

6.98

rp 3/8 "

15

1/2 "

28

33

38

33

38

46

3.18

4.09

8.15

rp 1/2 "

20

3/4 "

33

38

44

38

46

56

3.18

4.32

8.53

rp 3/4 "

25

1 "

38

44

51

46

56

62

3.68

4.98

9.93

Rp 1 "

32

1 1/4 "

44

51

60

56

62

75

3.89

5.28

10.59

RP 1.25 "

40

1 1/2 "

51

60

64

62

75

84

4.01

5.56

11.07

RP 1.5 "

50

2 "

60

64

83

75

84

102

4.27

7.14

12.09

Rp 2 "

65

2 1/2 "

76

83

95

92

102

121

5.61

7.65

15.29

RP 2.5 "

80

3 "

86

95

106

109

121

146

5.99

8.84

16.64

rp 3 "

100

4 "

106

114

114

146

152

152

6.55

11.18

18.67

rp 4 "
